Gaggia Manual Gasket or 2025 EPDM 70°SH

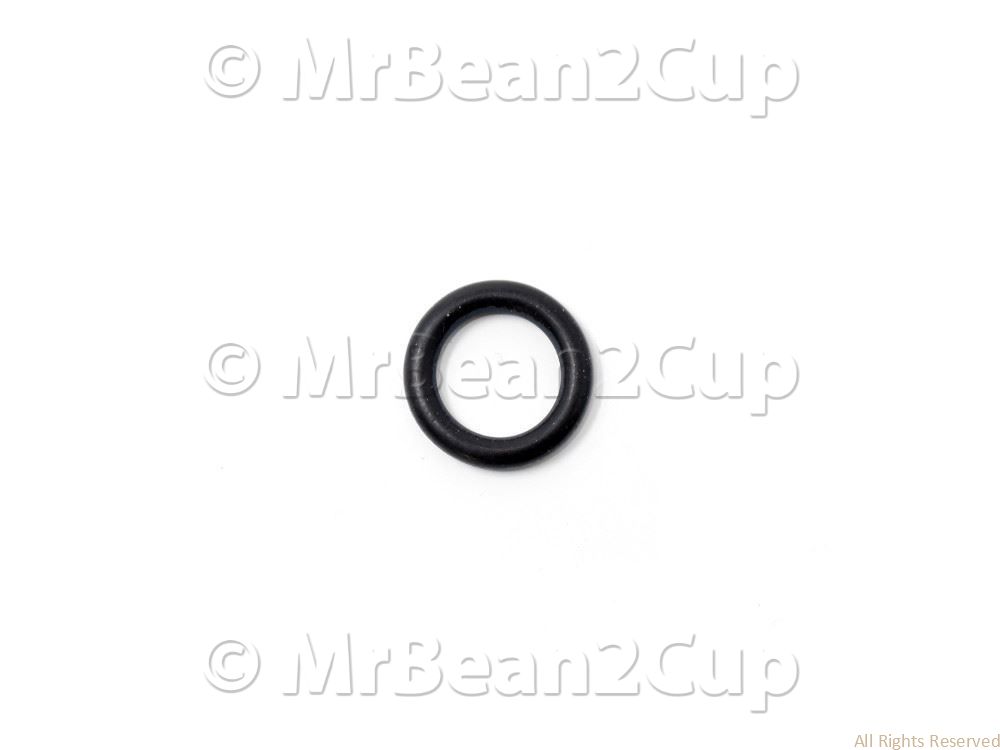

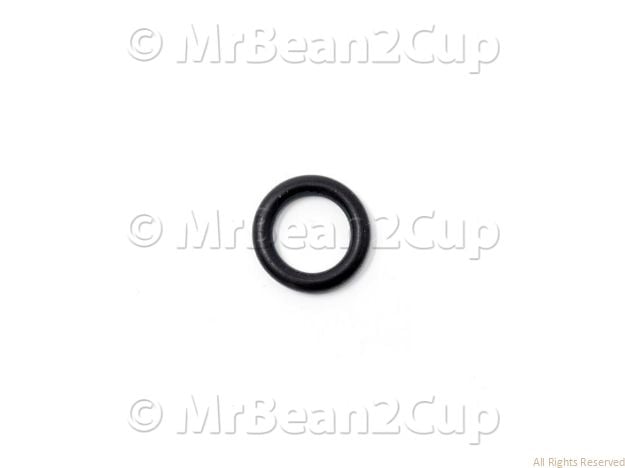

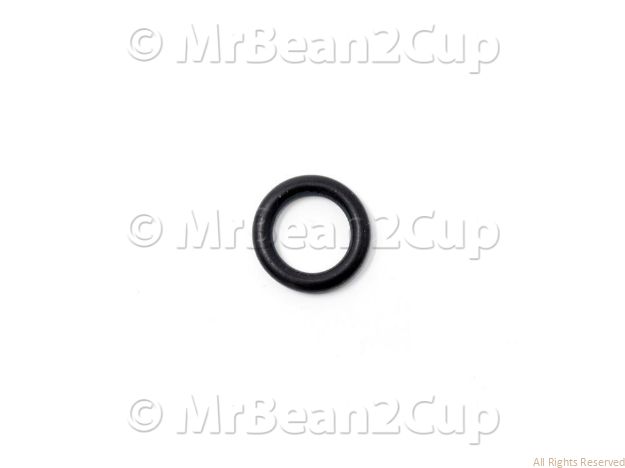

GASKET OR 2025 EPDM 70°SH
Manufacturer Part Number: DM0008/004, 996530054232, DM0041/088, NM02.007
If your coffee machine is leaking around the brew unit inlet sleeve or from the joint between the upper and lower steam wand tubes, a worn O-ring may be one of the most common causes.
Common Symptoms This Part May Fix
- Water leaking around the brew unit inlet sleeve
- Poor sealing where the brew unit inlet sleeve connects to the brew unit
- Steam or water leaking from the steam wand tube joint
- Worn, flattened, or damaged O-ring
This genuine replacement O-ring is used in different locations depending on the coffee machine model. On compatible bean-to-cup machines, it fits selected black, grey and cream-coloured brew unit inlet sleeves. On compatible manual coffee machines, it is used between the lower and upper tubes of the steam wand.
Over time, heat, pressure, movement, limescale, and age can cause O-rings to harden, flatten, or lose their sealing ability, resulting in leaks or poor sealing.
Trusted by repair technicians and used in professional coffee machine repairs.
Known Applications
- Black brew unit inlet sleeve: 20000440 / GAGGSAE-1-1463
- Grey brew unit inlet sleeve: 0301.R04.150 / GAGGSAE-1-1532
- Cream-coloured brew unit inlet sleeve: 421944050641 / GAGGSAE-1-2110
- Joint between the lower and upper steam wand tubes on selected manual coffee machines
Important Information
The fitting position of this O-ring varies depending on the coffee machine model. Do not rely on the colour of the brew unit inlet sleeve alone when identifying the correct part.
We recommend replacing damaged, flattened, or hardened O-rings during repairs and servicing. Reusing a worn seal may result in leaks after reassembly.
O-rings are wear items and we generally recommend replacing them every 4 years as part of routine servicing to help maintain reliable sealing and reduce the risk of leaks.
Compatibility
This O-ring fits selected Gaggia, Saeco and Philips bean-to-cup coffee machines fitted with compatible black, grey or cream-coloured brew unit inlet sleeves. It is also used in the steam wand assembly of selected manual coffee machines.
Please use the compatibility checker and exploded diagrams above to confirm your machine model and the correct fitting location before ordering.
Manufacturer Part Numbers
DM0008/004, 996530054232, DM0041/088, NM02.007
Need Help Finding the Right Part?
Not sure which O-ring you need or whether it fits your coffee machine? Contact us before ordering and our team will help you identify the correct part for your model.
Common Questions
Where is this O-ring used on bean-to-cup coffee machines?
It is used on selected black, grey and cream-coloured brew unit inlet sleeves, helping to create a reliable seal where the brew unit connects to the brew unit inlet sleeve.
Can this O-ring fix a leaking steam wand joint?
In many cases, yes. On selected manual coffee machines, this O-ring seals the joint between the lower and upper steam wand tubes. A worn or flattened seal may allow steam or water to escape from the connection.
Does the same O-ring fit all three inlet sleeve colours?
It fits selected black, grey and cream-coloured brew unit inlet sleeves, but compatibility depends on the coffee machine model. Use the compatibility checker and exploded diagrams to confirm the correct part and fitting position.
Should I replace this O-ring during repair?
Yes. If the original O-ring is damaged, flattened, brittle, or no longer seals correctly, we recommend replacing it. As O-rings are wear items, we also generally recommend replacement every 4 years during routine servicing, even if there are no obvious signs of damage.
Will this fit my machine?
Use the compatibility checker and exploded diagrams above to confirm your machine model and the correct fitting location.
Is this a genuine part?
Yes. This is a genuine replacement O-ring used in selected Gaggia, Saeco and Philips coffee machines.
If you are not sure what part you need please follow our Guide or Contact us here.
Please note we do not accept any kind of liability from incorrectly fitted parts. Wrongly fitted parts void warranty.
If you are not competent to carry out a repair, seek professional help here!
