Gaggia Cadorna Style/Plus/Milk Service Pack 2 - Fittings

Manufacturer Part Number: kit83-fittings

This kit includes fittings for Gaggia Cadorna Style/Plus/Milk Service Pack 2 - Every 8 years or after 8000 cups (SKU: Kit83).

Please open the Gaggia Cadorna Style/Plus/Milk Spares and Diagrams page and click on "Expert View" to locate each part accurately.
Gaggia Cadorna Style/Plus/Milk Spares and Diagrams

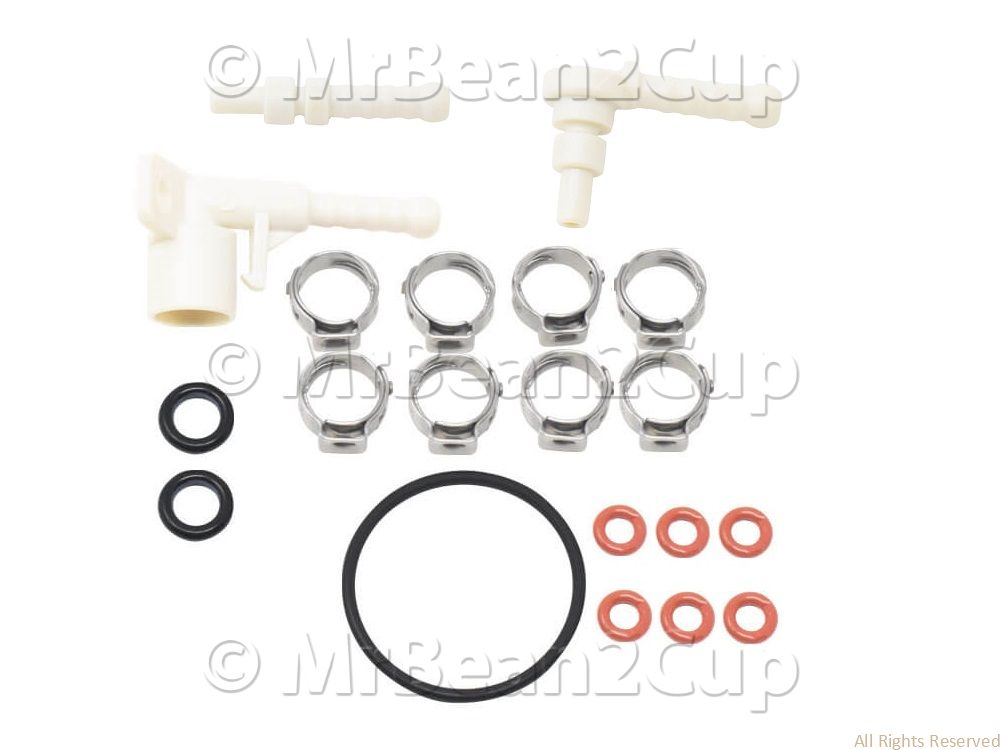

Kit Contents

Check the "KIT INFO" tab to see quantities of each part listed below.

1. Gaggia Saeco Gasket Or 2015 in Silicon PTFE/FDA (PTFE Pipe Gasket, VI) (GAGGSAE-1-1520)
   Diagram 2, Position 207


2. Gaggia Steam Tube Support P0057 (GAGGSAE-1-1121)
   Diagram 3, Position 308


3. Gaggia, Saeco, Philips Or Orm 0060-20 Termoil (GAGGSAE-1-1947)
   Diagram 3, Position 310


4. Oetiker Clip 9.5mm (Oetiker-95mm)
   Diagram 3, Position 307


5. Waterflow Meter Gasket O-RING 02112 (MRB2C-1-178)
   Diagram 3, inside the water flowmeter, Position 327


6. Gaggia Wht Connect.Fast Lock 90 Silic.Tube PPS (GAGGSAE-1-2180)
   Diagram 3, Position 313

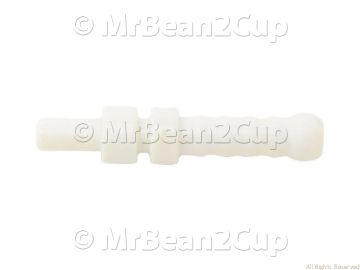

7. Gaggia White Connector Fast Lock-Silicone Tube (GAGGSAE-1-2183)
   Diagram 3, Position 345

Tools

You`ll need the following tools:

• T20 Torx screwdriver: Used to remove the screw from the grinder finger protector (This size of the screwdriver required may vary between T10, T15 and T20),
• T10 torx screwdriver: For removing the remaining screws,
• Small Flat screwdriver: Ideal for safely removing o-rings and plastic components,
• Cable cutter: Used to remove/peel off  Oetiker Clamp.(find the end of the oetiker clamp and peel it off the tube). To Install, squeeze the bottom of the loop on the new clamp.
• 12mm spanner: used to separate the pump from the OPV.

Add-On

You will need major parts to use these fittings:

• Gaggia Cadorna Style/Plus/Milk Service Pack 2 - Every 8 years or after 8000 cups (SKU: Kit83)

Other kits

You may consider our maintenance kit too:

• Gaggia Maintenance Kit for Bean to Cup Coffee Machines (SKU: kit39)
  Note: This kit does NOT include any major parts

See "Related Products" below to find this kit.
